BÖHLER A220SC

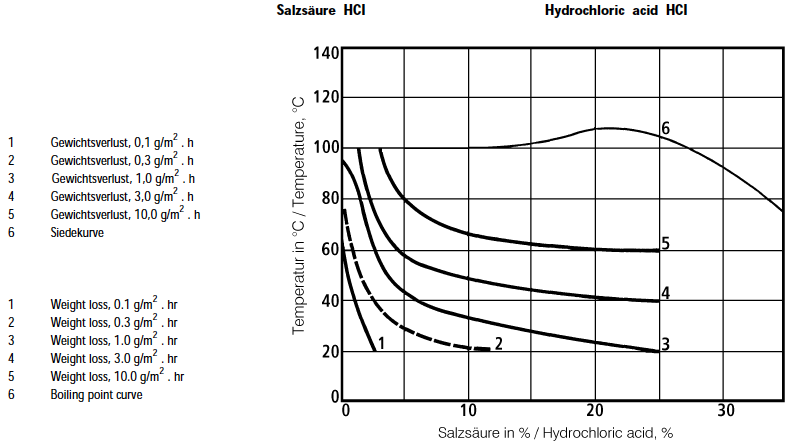

BÖHLER A220SC is a low carbon, chromium nickel and molybdenum steel. Structure homogeneous, stable austenite. Weldable with analogous filler metal giving fully austenitic deposit. Resistant to intergranular corrosion in the temperature range up to 750°F (400°C). Resistance to acids having a reducing effect, like diluted sulphuric acid and hydrochloric acid is good. The steel is not susceptible to pitting, crevice and stress corrosion cracking in media containing chloride ions and possesses excellent resistance to the attack of urea and biocompatibility. Cold forming properties are good. The steel is capable of taking a mirror finish. The steel is produced as a remelt grade and thus meets the usual requirements for steel purity as specified for implant material.

Forme di prodotto disponibili

Percorso di fusione

Airmelted + ESR

Numeri del materiale

SEL
1.4435
SEL
1.4441
EN
X2CrNiMo18-14-3
EN
X2CrNiMo18-15-3
UNS
S31603
AISI
316LUG

Standard

DIN
DIN ISO 5832-1
ASTM
E114
ASTM
F138
BS
7252/1

Composizione chimica

* Composizione chimica (media %)

C
max. 0.030
Si
max. 0.75
Mn
max. 2.00
P
max. 0.025
S
max. 0.010
Cr
17.00 to 19.00
Mo
2.25 to 3.00
Ni
13.00 to 15.00
Cu
max. 0.50
Co
max. 0.10
N
max. 0.10

Applicazioni
